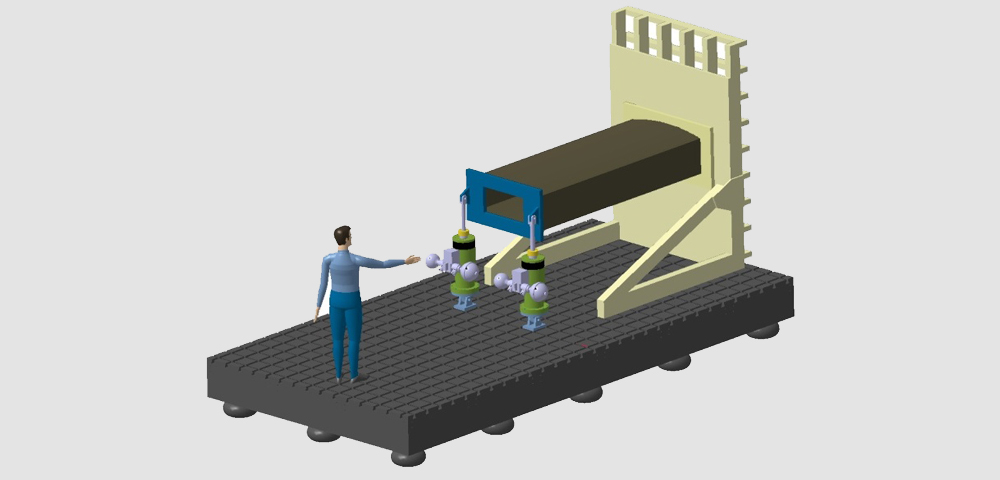

The variable dynamic test bench (VPS) enables a wide range of structural component tests. Due to its modular design, diverse test setups with appropriate measurement systems can be realized. Quasistatic as well as cyclical loads can be applied, e.g., for strength or service life tests. As part of the multi-scale- test pyramid, component tests can reduce expenses and costs for full-scale tests.


  • Base plate for mounting: 3000 mm x 6000 mm
  • Mounting of variable test setups with: T-flutes
  • Angle plates: 985 mm and 1385 mm in height
  • Hydraulic cylinder: 1x 250 kN ß 2x 60 kN, 100 mm stroke
